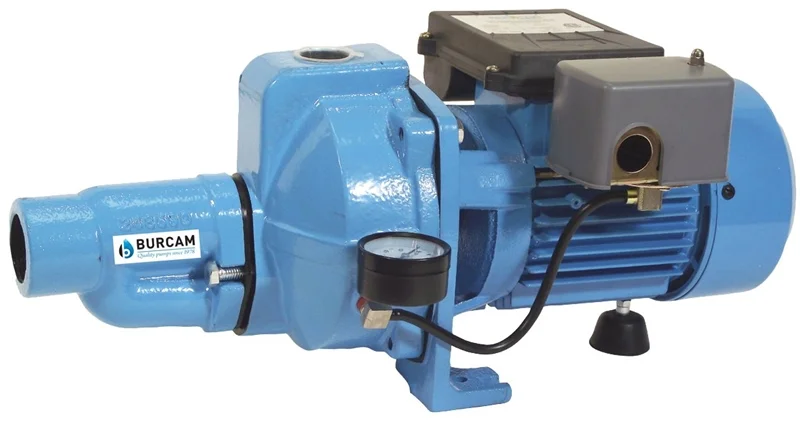

Burcam 506321 Jet Pump, 8 A, 115 V, 0.5 hp, 1 in Connection, 80 ft Max Head, 10.8 gpm, Iron

Description

Cast iron convertible jet pump. SW operation 0 to 25 ft with ejector screwed on pump body. DW operation 0 to 80 ft with 2 pipes and ejector down in the well. High performance Noryl? impeller, industrial motor totally enclosed, fan cooled. full time connected run capacitor, to eliminate starting wear vs regular motor. Thermal and overload protection, built for a continuous use. 1/2 hp TEFC motor, 115/230 V. Maximum pressure of 85 psi. Capacity at 20 psi, 650 gph/5 ft, 565 gph/10 ft, 485 gph/15 ft, 365 gph/20 ft, 245 gph/25 ft, 575 gph/30 ft, 465 gph/40 ft, 365 gph/50, ft 170 gph/80, ft 1 in NPT suction. 1 in NPT discharge. 38 lb (17.27kg).
