Description

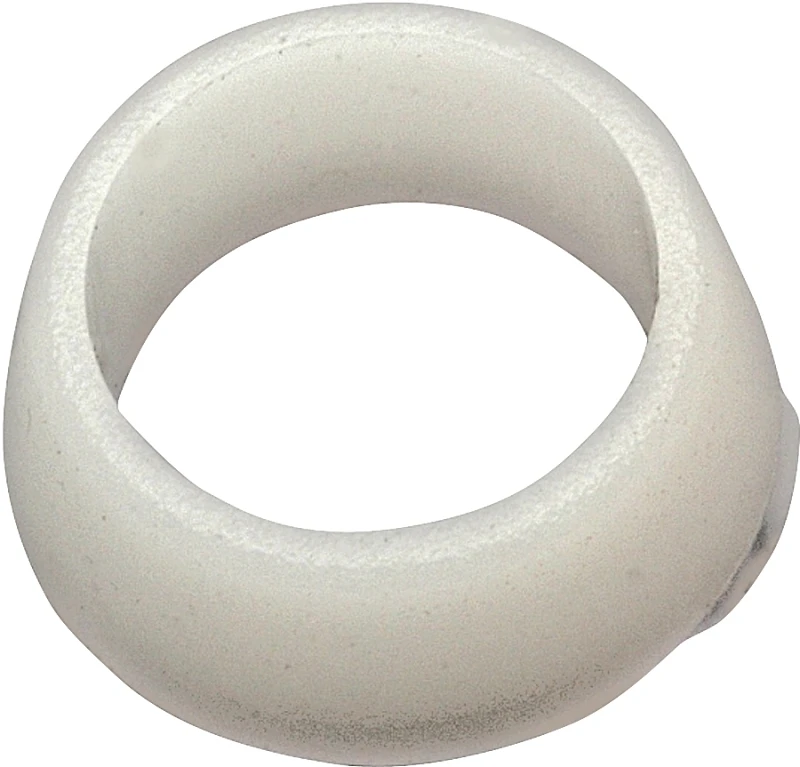

Anderson Metals 3/8″ Plastic Compression Sleeve. It is suitable for gasoline, oil, vacuum lines, and water. This sleeve is compatible with aluminum, brass, copper, and plastic tubing. It has a temperature rating of -65 to 250 degrees Fahrenheit. Easy to disassemble, no flaring tool is required.
Three Piece Construction – Nut, Sleeve (Or Ferrule) And Body
Use With Copper, Aluminum Or Plastic Tubing (Plastic requires 60P Sleeve And 61P Insert)
Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
Standard Fittings Use Short Nuts. Long Nuts Are Available For Higher Vibrations Applications.
To Buy Compressions Fittings with Long Nut, Please Add a “1” In Front Of The Part Number. (i.e. 68 = 168)
Easy To Disassemble, No Flaring Tool Required
Primary Uses: Water, Gasoline, Oil and Vacuum Lines
To Assemble:
1. Cut Smooth, Square End On Tubbing
2. Slide Nut, Then Sleeve Onto Tube. Thread Must Face End.
3. Insert Tube Into Fitting
4. Thread Nut Onto Fitting Until Snug, then as follows: Up To 1/4 Inch = 1-1/4 Turns, 5/16 Inch = 1-3/4 Turns, 3/8 Inch and Up = 2-1/4 Turns
WARNING: This product can expose you to petroleum, a chemical known to the State of California to cause cancer and reproductive harm.
