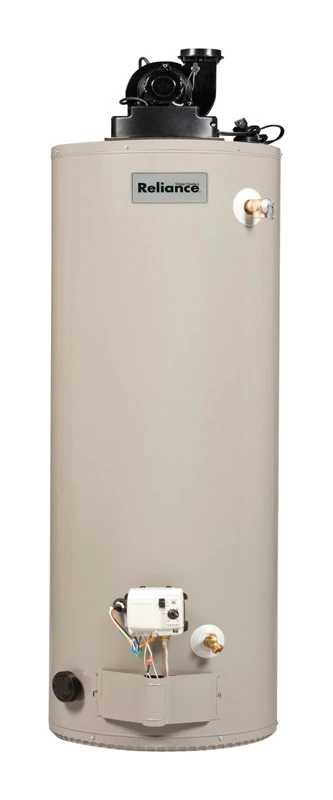

Reliance 50 Gallon Natural Gas Short Power Vent Water Heater. It is Energy Star Qualified and has a 40,000 BTU rating. This water heater features a 3 position rotatable capability blower and a 120V power cord. It must be electrically grounded. Horizontal & vertical vent runs up to 180 equivalent feet with 4″ diameter venting. Schedule 40 vent piping system with PVC, ABS, or CPVC pipe. Vent distance up to 180′, with 4″ pipe, 2″ insulation. Self cleaning diffuser end Pex dip tube. Glass lining. Hot surface igniter. No standing pilot. First hour rating 90. Recovery at a 90-Degree rise-GPH 44.7. UEF: 0.72. EF: 0.70. Anode rod. Installed T & P relief valve. Electronic gas control for more precise temperature control. Unit dimensions: 60.13″H to top of blowerx24″D. 6 year tank & parts limited warranty. 1 year labor allowance not for mobile/manufactured housing. Void if installed in mobile/manufactured home. 198 lb. Up to 10,100′ elevation.
50 Gallon capacity
Energy Star Qualified
40,000 BTU rating
3 position rotatable capability blower
120V power cord
Must be electrically grounded
Horizontal and vertical vent runs up to 180 equivalent feet with 4″ diameter venting
Schedule 40 vent piping system with PVC, ABS, or CPVC pipe
Vent distance up to 180′ with 4″ pipe
2″ insulation
Self cleaning diffuser end pex dip tube
Glass lining
Hot surface igniter
No standing pilot
First hour rating of 90
Recovery at a 90 degree rise of 44.7 GPH
UEF of 0.72
EF of 0.70
Anode rod
Installed T & P relief valve
Electronic gas control for more precise temperature control
